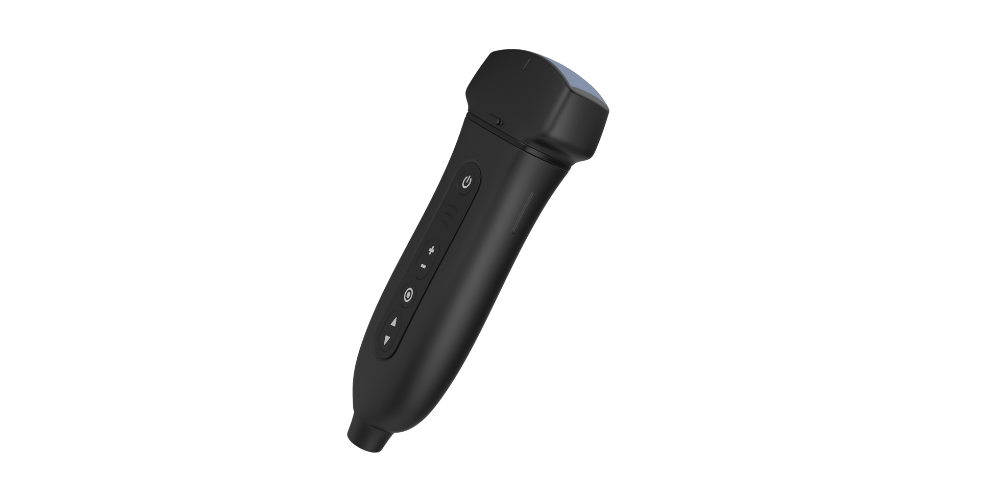

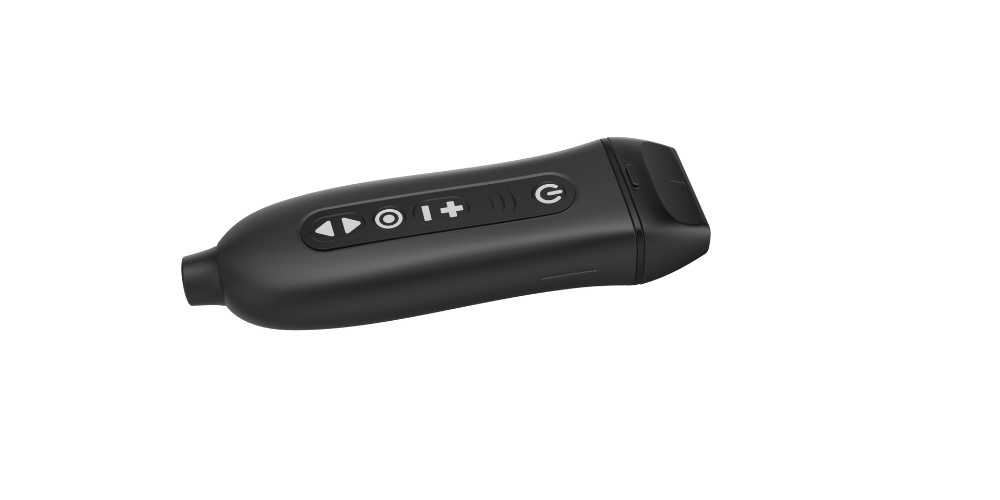

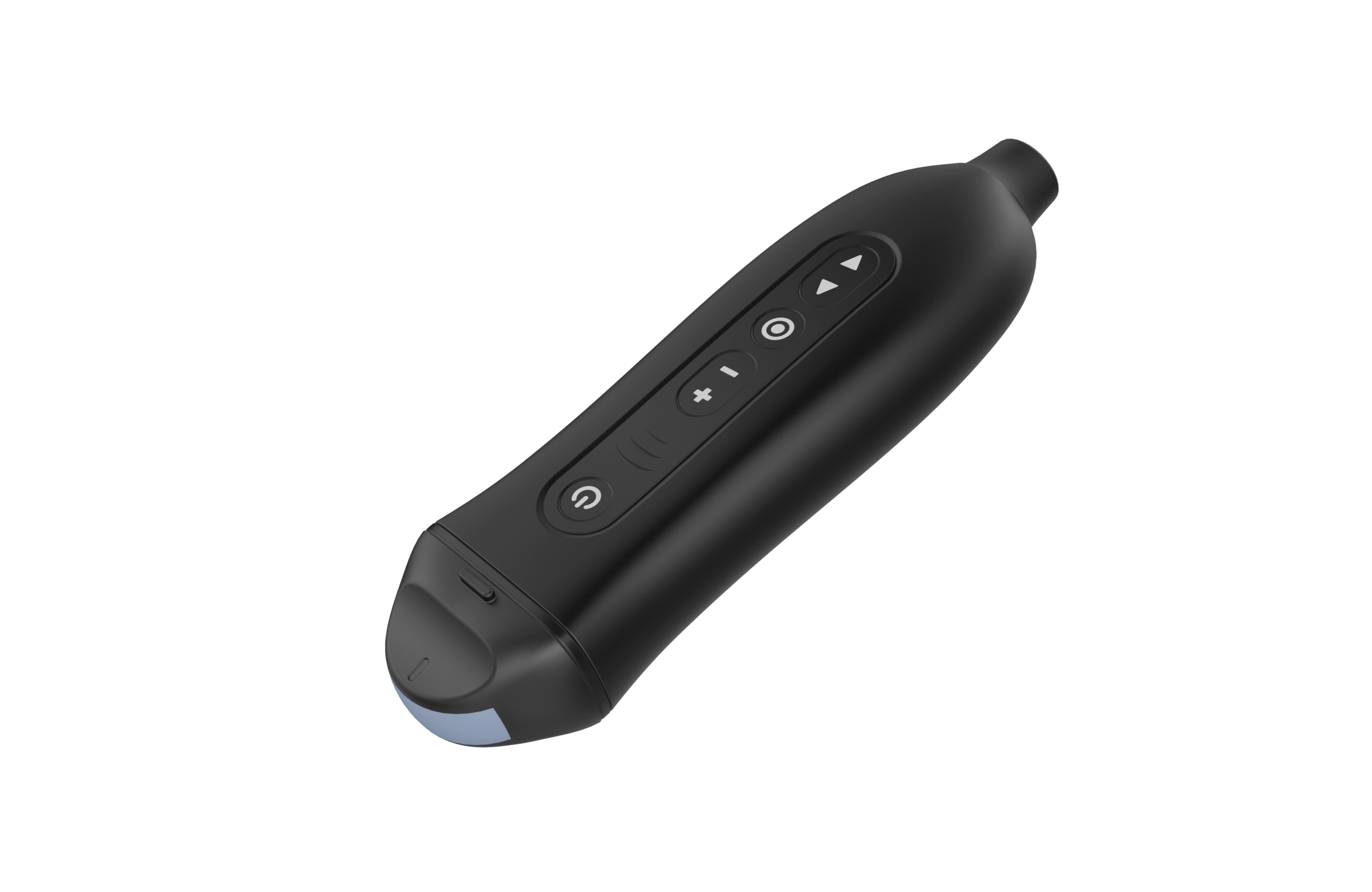

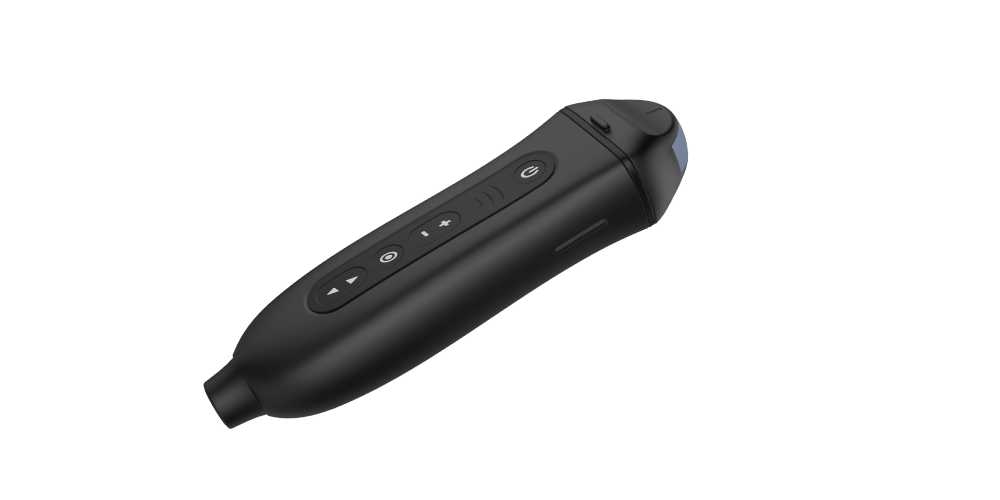

Liberty Q7 Wireless Pocket Ultrasound

Pocket-Sized, High-Definition Ultrasound for Veterinary Applications

Overview

The Liberty Q7 Wireless Ultrasound redefines portability and convenience in veterinary imaging. Weighing just 160g and small enough to fit in your pocket, this compact system delivers high-definition images and versatile functionality for a wide range of applications. Its detachable probe head design allows one handle to accommodate multiple imaging needs with a quick switch of the probe head.

Key Features

Unparalleled Portability

  • Pocket-Sized Design: Weighs only 160g and fits comfortably in the palm of your hand.
  • Water Resistant: Durable for use in various environments.
  • 4-Hour Battery Life: Continuous operation for extended field or clinic use.

High-Definition Imaging

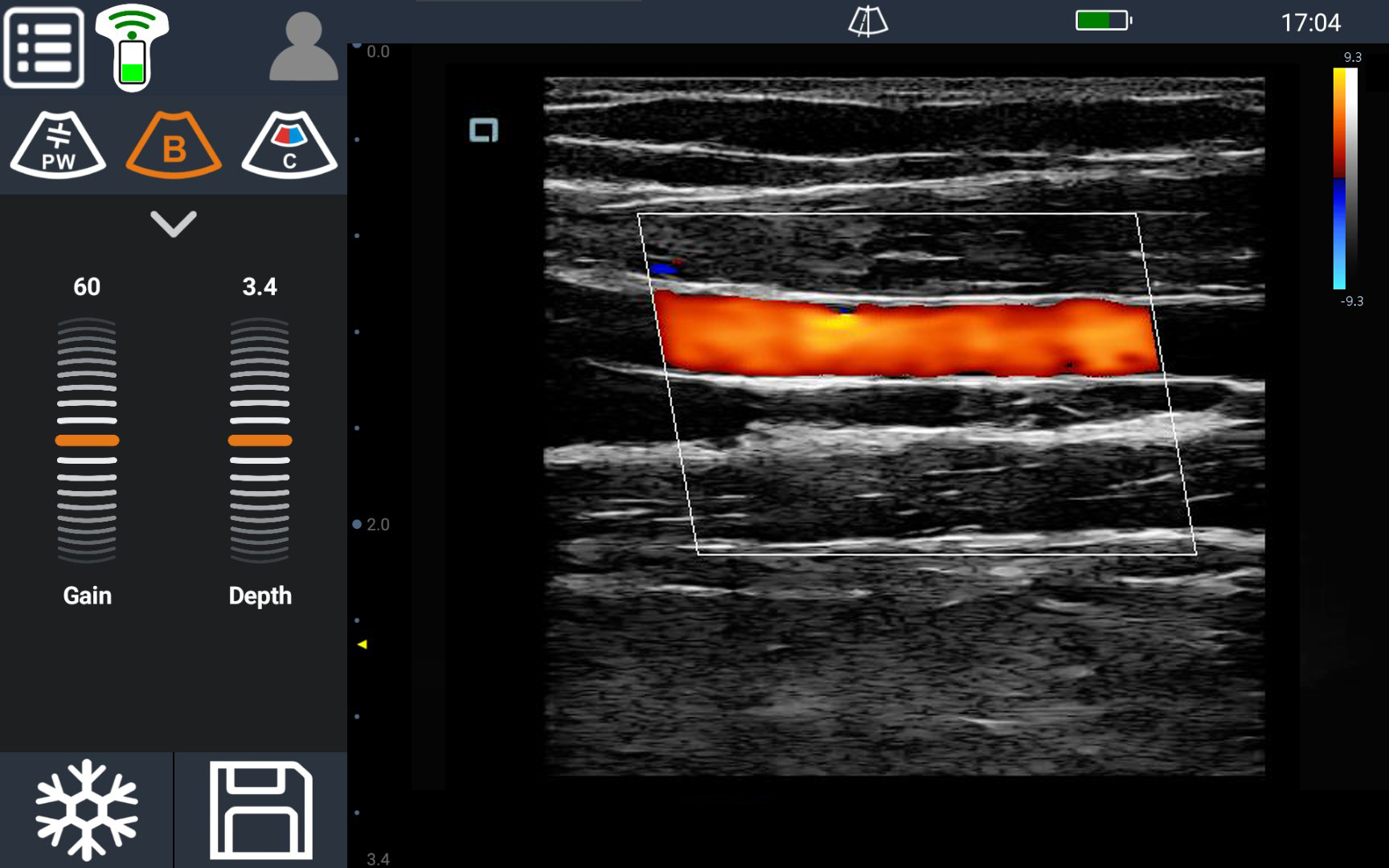

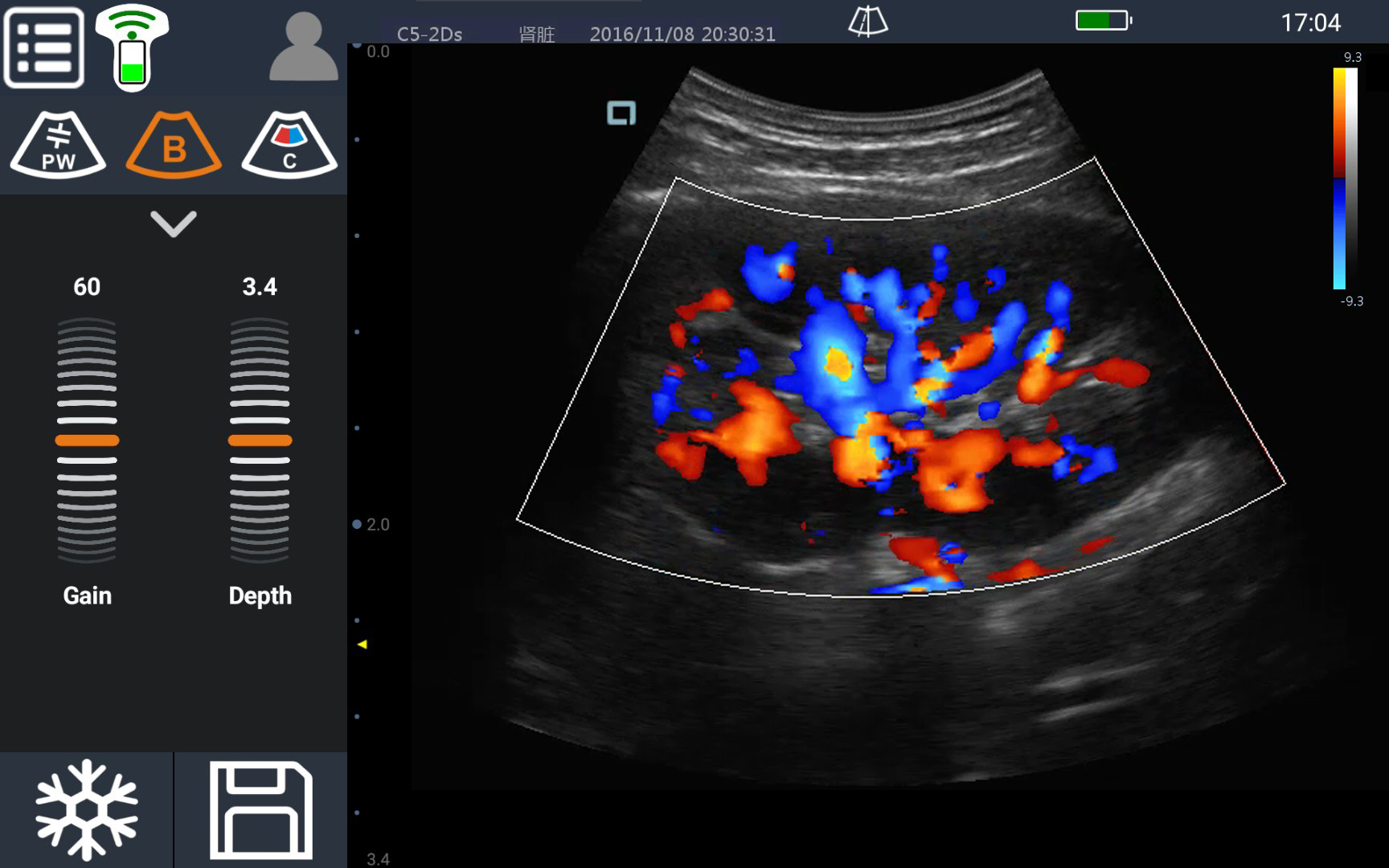

  • Imaging Modes: B, M, 2B, THI, Color, Power, and PW for diverse imaging needs.
  • Advanced Digital Technology:
    • Wide-angle imaging
    • Panoramic focusing
    • Frequency and space compounding
    • Tissue Harmonic and Tissue-Specific Imaging

Flexible Compatibility

  • Devices Supported: Compatible with Windows, iOS, and Android systems.
  • Connectivity: WiFi (2.4G/5G 802.11b/g) and USB for seamless integration.

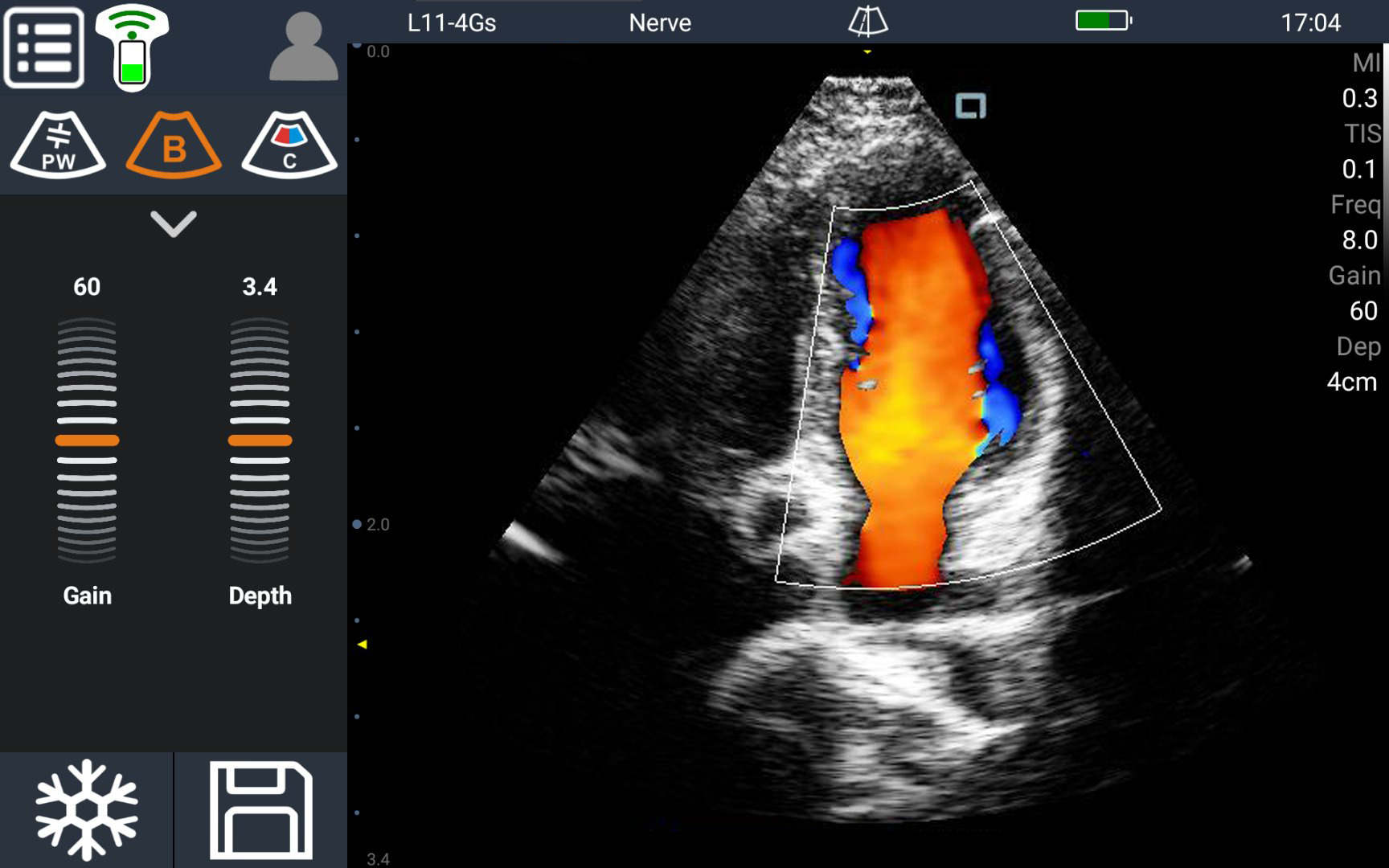

  • App Support: Download the "SonoiQVet" app on your preferred device for easy operation.

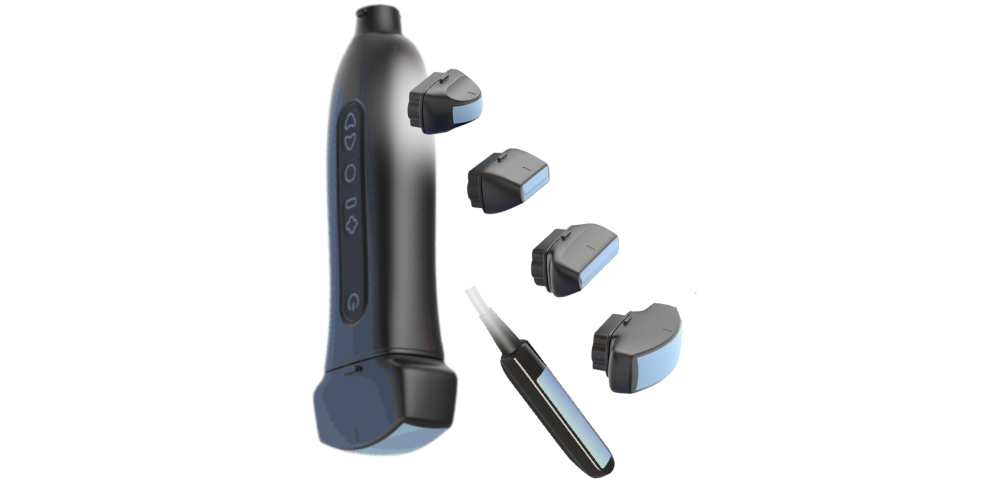

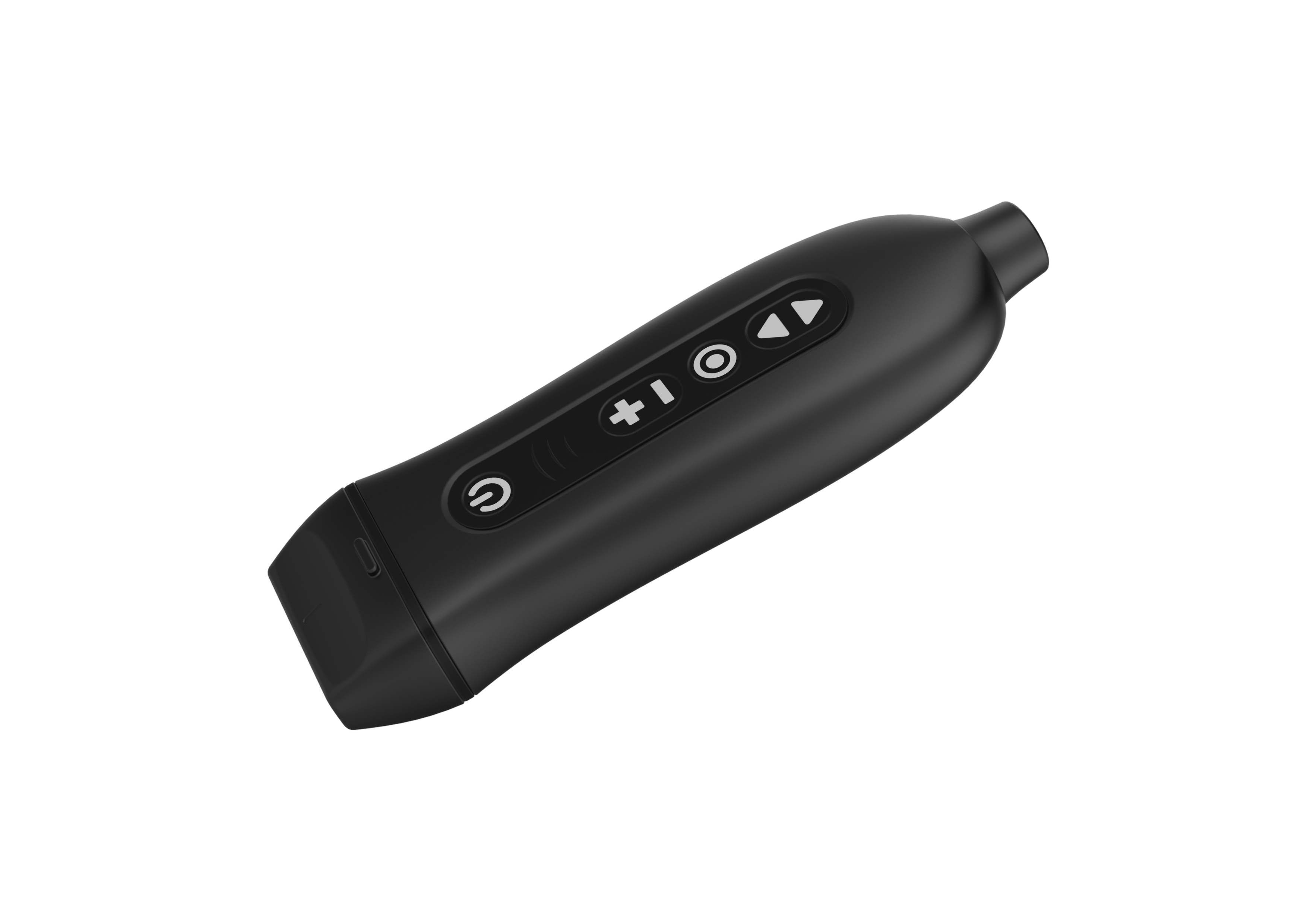

Available Probes

  • Choose from a range of probe heads for specific applications:
    • Large Convex (2.5-5.0 MHz)

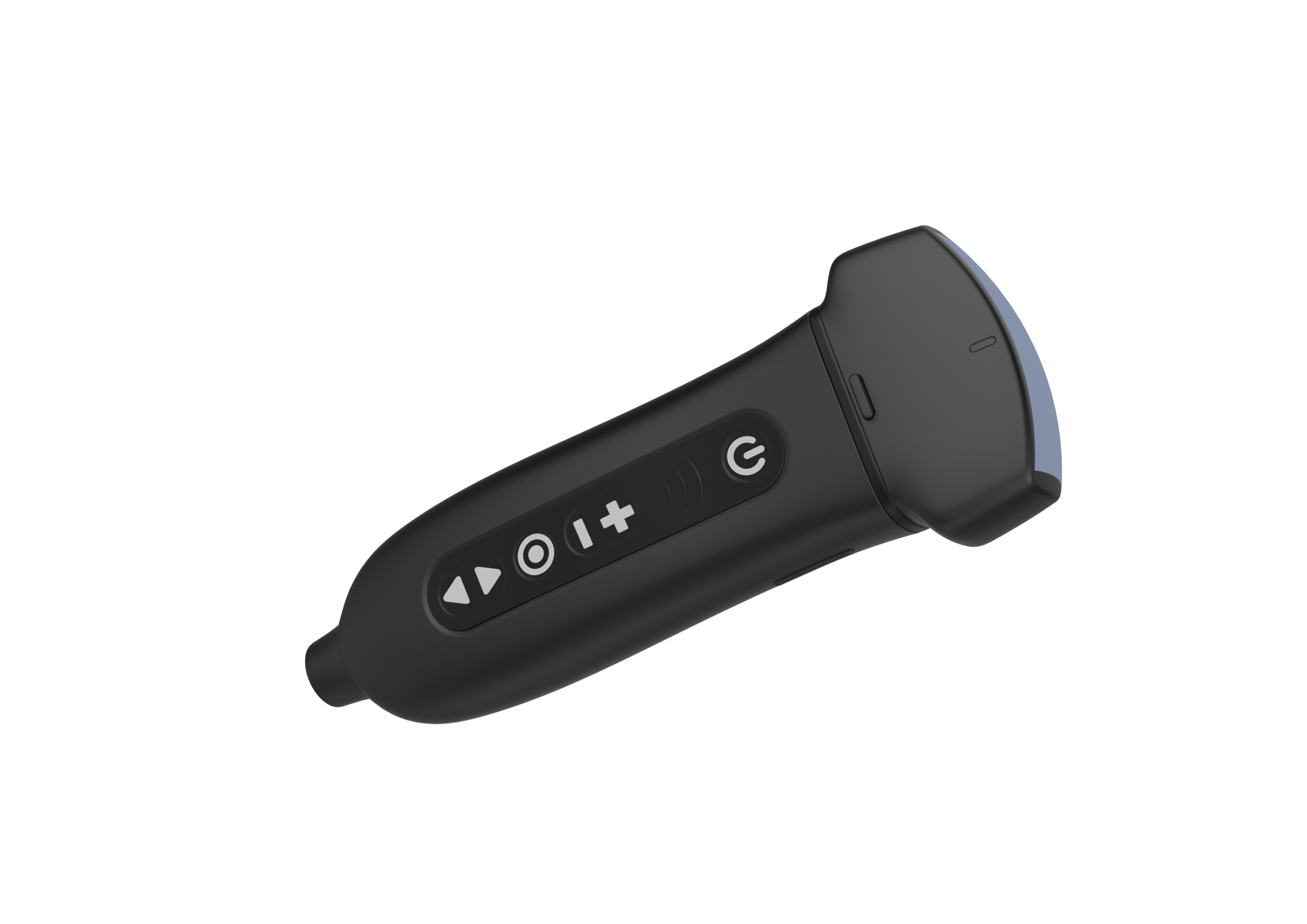

    • Convex (2.5-5.0 MHz)
    • Microconvex (5-8 MHz)
    • Small Micro-Linear (6-11 MHz)

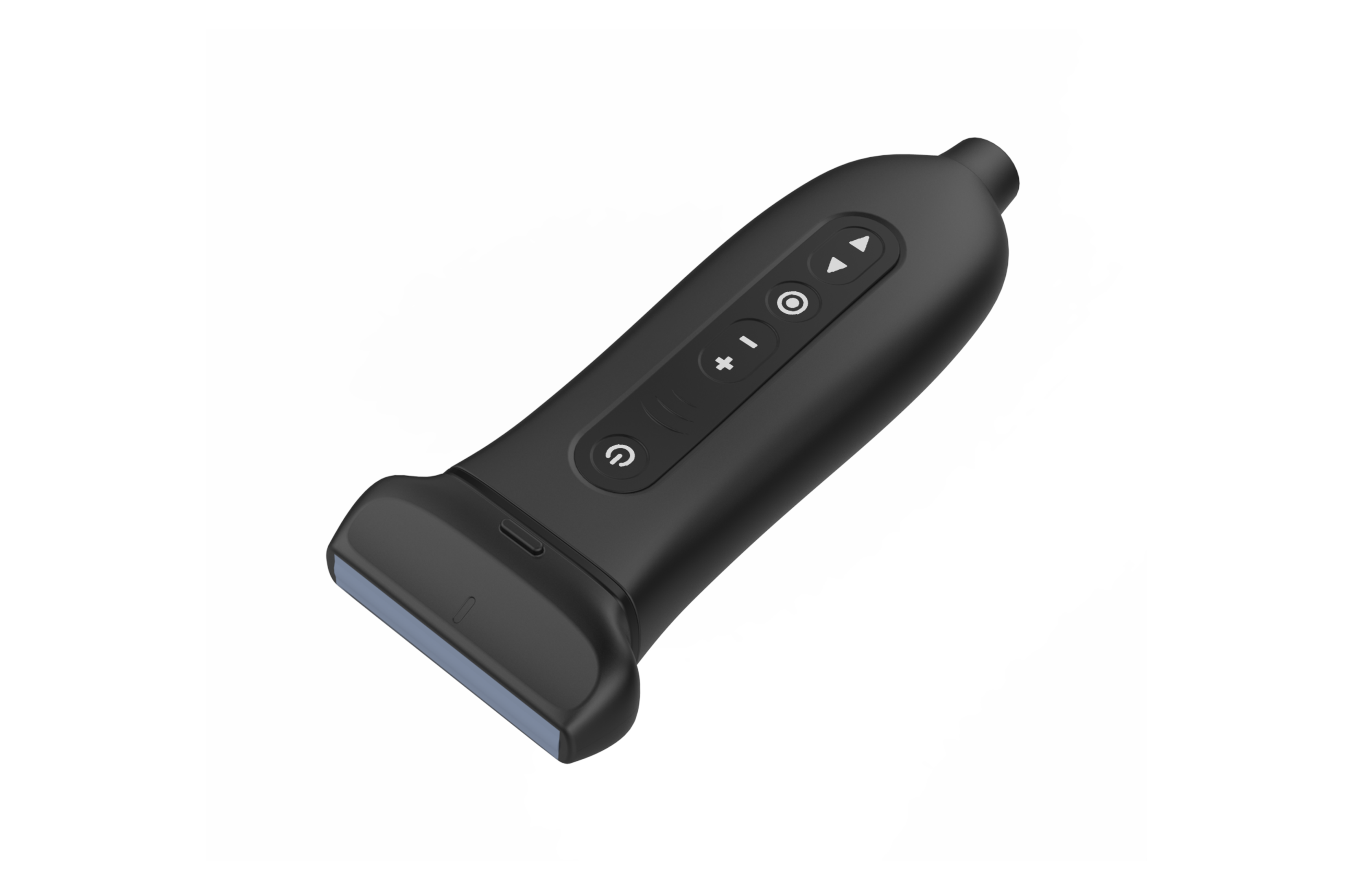

    • Linear Array (6-11 MHz)

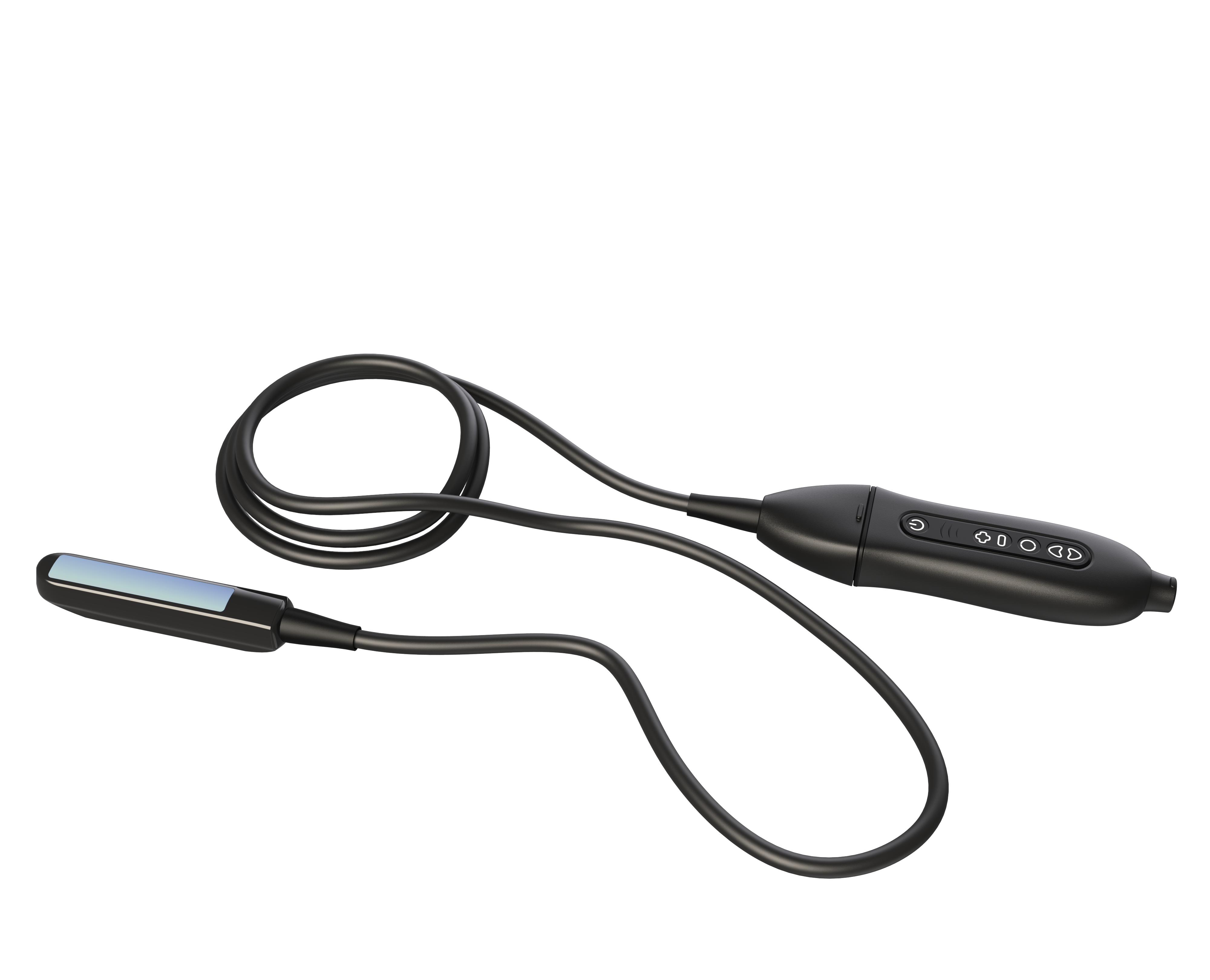

    • Repro Linear Array (5.0-10 MHz)

Specifications

  • Gray Levels: 256
  • Transducer Frequency: 2-11 MHz
  • Max Scanning Depth: 310mm
  • Detachable Probe Head: Patented design for versatility and convenience.
  • Digital Technology: Advanced imaging enhancements for clear diagnostics.

Why Choose the Liberty Q7 HD?

  • Compact and Portable: Ideal for use in the field or clinic.
  • Versatile Applications: Interchangeable probe heads for a variety of diagnostic needs.
  • User-Friendly: Simple setup with the "SonoiQVet" app on any compatible device.
  • High-Quality Imaging: Delivers exceptional resolution and imaging depth.

Included in the Package

  • One probe handle
  • One probe head
  • One-year warranty

Note: Tablet not included. Price available only online.
